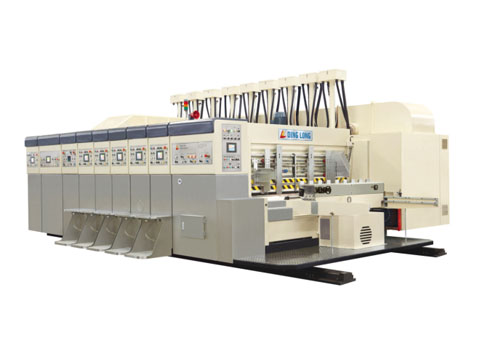

SNOVA-TP

Vacuum transfer top printing slotting die-cutting machine

Features:

  • IntegratedCNC control system, troubleshooting, production management, remote maintenance.
  • Quick printing plate mounting, motorized phase zero.
  • Powerful dust remover, with anti-static bar, centralized dust collection, less ECT loss.
  • High precious transfer structure with ceramics vacuum transfer wheel, good registration accuracy.
Chat online [email protected]

Product specification

       Series 920 1224 1228 1628 1632 1636
Max. Machine Speed

（R/min）

 300 250 220 180 180 150
Max. Feeding Size

（L×W）

 900×2000 1200×2400 1200×2800 1600×2800 1600×3200 1600×3600
Skip feeding size

（L×W）

  1100×2000 1500×2400 1500×2800 2000×2800 2000×3200 2000×3600
Max. Printing Area

（L×W）

 850×1950 1150×2350 1150×2750 1550×2750 1550×3150 1550×3550
Min. Feeding size

（L×W）

 300×650 350×690 450×690
Standard Printing Plate thickness 7.2
Min. Slotting interval Normal 150×150                    160×160
Reverse 240×60                    250×70

Product Features

  • IntegratedCNC control system, troubleshooting, production management, remote maintenance.
  • Quick printing plate mounting, motorized phase zero.
  • Powerful dust remover, with anti-static bar, centralized dust collection, less ECT loss.
  • High precious transfer structure with ceramics vacuum transfer wheel, good registration accuracy.
  • Choose international brand electric components and transfer bearings, pass CE certification.

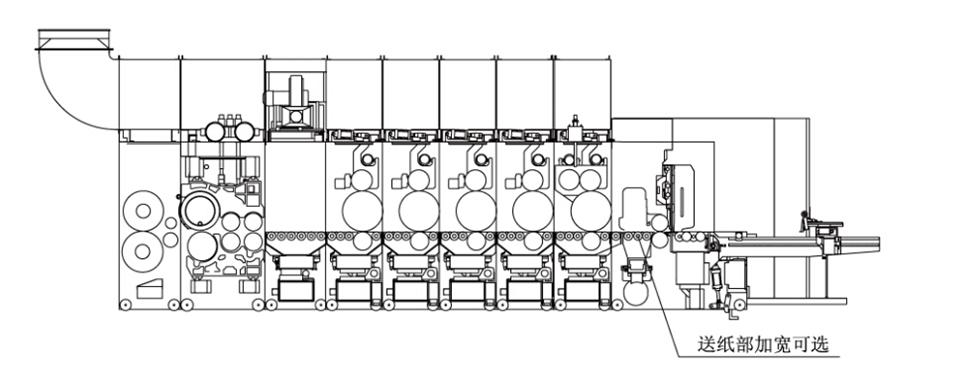

Graphic (TP)

Product unit

Console:

  • Windows base CNC control system
  • Remote maintenance.
  • Huge order saving.
  • Trouble-shooting.
  • Optimized order memory.
  • Production and order management.
  • Available to connect with the customer internal ERP.

Feeding Unit:

  • Operation can be controlled by both main console and each unit touch screen.
  • Lead-edge feeding, adjustable air control, precious registration
  • Precious liner guideway lateral moving
  • Motorized side squaring and paper support
  • Powerful dust remover, with anti-static bar, centralized dust collection, less ECT loss

Printing Unit：

  • Operation can be controlled by both main console and each unit touch screen.
  • Top print, high precious transfer structure with ceramics vacuum transfer wheel, good registration accuracy.
  • Quick printing plate mounting, motorized phase zero.
  • Ink saving circulate system, safety ink taking, short ink alarm.
  • Option: Double doctor blade.

Drying Unit:

  • Operation can be controlled by both main console and each unit touch screen.
  • Vacuum transfer, motorized gap adjustment.
  • Energy saving dry section, hot air circulating, settable temperature.
  • Option:Infrared ray or UV dryers

Slotting Unit:

  • Operation can be controlled by both main console and each unit touch screen.
  • Liner guideway lateral moving device with universal cross joints.
  • Pre-creaser, creaser slotting holder motorized gap control.
  • Box height motorized control
  • Large displacement of middle knife.

Die-cutting Unit:

  • Up die-cutting, clean up scrap thoroughly, motorized die-cutting pressure adjustment.
  • Die-cutting roll pneumatic self-locking device, smooth die-cutting.
  • Sheet guide roll displacement motorized control, quick order change.
  • U.E quick change die-cut anvil with grinding mechanism.
  • Precious settable speed difference compensation, ensure die-cutting accuracy.

Stripping Unit

  • Independent stripping unit.
  • Belt transfer, angle adjustable fan assistant clean up scrap.
  • Dual vibration roll, speed frequency invert control.
  • Powerful fan clean up scraps.

Stacking Unit

  • Stacker operate automatic or manually
  • Pneumatic lifting device for receiving arm , tightnessdegree adjustable
  • Different speed section typestacking,  transfer belt inverter control
  • Stacker platform lifting inverter control, protection device for lifting safety
  • Side square.Pneumatic stacker lifting.
