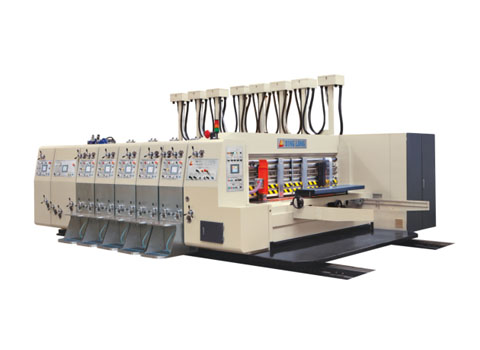

SNOVA-HP

Top printing, roll to roll transfer printing slotting die-cutting machine

Features:

  • IntegratedCNC control system, troubleshooting, production management, remote maintenance.
  • Quick printing plate mounting, motorized phase zero.
  • Bridge platform lifting synchronous with printing gap adjustment.
  • Choose international brand electric components and transfer bearings, pass CE certification.
Chat online [email protected]

Product specification

 Series 920 1224 1228 1628 1632
Max.machine speed(R/min) 300 250 220 180 180
Max.feeding size(L×W) 900×2000 1200×2400 1200×2800 1600×2800 1600×3200
Skip feeding size(L×W) 1100×2000 1500×2400 1500×2800 2000×2800 2000×3200
 Max.printing area(L×W) 850×1950 1150×2350 1150×2750 1550×2750 1550×3150
Min.feeding size(L×W) 300×650 350×690 450×690
Printing plate thickness 7.2
Min.slotting interval Normal 150×150 160×160
Reverse 240×60 250×70

Product Features

  • IntegratedCNC control system, troubleshooting, production management, remote maintenance.
  • Quick printing plate mounting, motorized phase zero.
  • Bridge platform lifting synchronous with printing gap adjustment.
  • Choose international brand electric components and transfer bearings, pass CE certification.

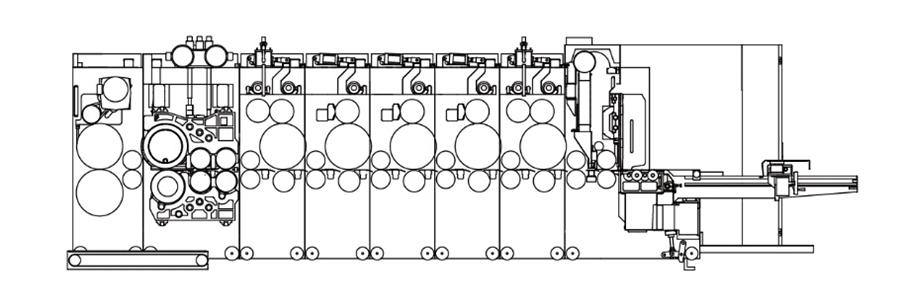

Graphic (HP)

Product unit

Console:

  • Windows base CNC control system
  • Remote maintenance.
  • Huge order saving.
  • Trouble-shooting.
  • Optimized order memory.
  • Production and order management.
  • Available to connect with the customer internal ERP.

Feeding Unit:

  • Operation can be controlled by both main console and each unit touch screen.
  • Lead-edge feeding, adjustable air control, precious registration
  • Precious liner guideway lateral moving
  • Motorized side squaring and paper support
  • Brush and dust catcher synchronic lifting.
  • Double couple feeding roller device ,feeding rubber roller use quick replace device

Printing Unit：

  • Operation can be controlled by both main console and each unit touch screen.
  • Sheet guide roller quick lateral moving.
  • Bridge platform lifting synchronous with printing gap adjustment.
  • Quick printing plate mounting, motorized phase zero.
  • Ink saving circulate system, safety ink taking, short ink alarm.
  • Option: Double doctor blade.

Slotting unit

  • Operation can be controlled by both main console and each unit touch screen.
  • Liner guideway lateral moving device with universal cross joints.
  • Pre-creaser, creaser slotting holder motorized gap control.
  • Box height motorized control
  • Large displacement of middle knife.

Die-cutting Unit:

  • Up die-cutting, clean up scrap thoroughly, motorized die-cutting pressure adjustment.
  • Die-cutting roll pneumatic self-locking device, smooth die-cutting.
  • Sheet guide roll displacement motorized control, quick order change.
  • U.E quick change die-cut anvil with grinding mechanism. Precious settable speed difference compensation, ensure die-cutting accuracy.

Stacking unit

  • Pneumatic lifting device for receiving arm , tightnessdegree adjustable
  • Different speed section typestacking,  transfer belt inverter control
  • Stacker platform lifting inverter control, protection device for lifting safety
  • Side square.Pneumatic stacker lifting.
