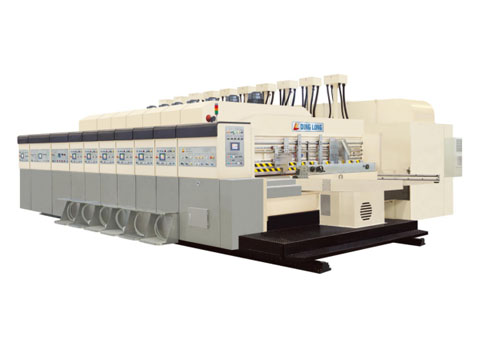

SNOVA-BP

Bottom printing, up die-cutting, clean up scraps thoroughly.
IntegratedCNC control system, troubleshooting, production management, remote maintenance.
Quick printing plate mounting, motorized phase zero.
Powerful dust remover, with anti-static bar, centralized dust collection, less ECT loss.

Product specification

Series		1224	1228	1628	1632	1636
Max. Machine Speed （R/min）		250	220	180	180	150
Max. Feeding Size （L×W）		1200×2400	1200×2800	1600×2800	1600×3200	1600×3600
Skip feeding size （L×W）		1500×2400	1500×2800	2000×2800	2000×3200	2000×3600
Max. Printing Area （L×W）		1150×2350	1150×2750	1550×2750	1550×3150	1550×3550
Min. Feeding size （L×W）		350×690		450×690
Standard Printing Plate thickness		7.2
Min. Slotting Size	Normal	160×160
	Reverse	250×70

Bottom printing, up die-cutting, clean up scraps thoroughly.
IntegratedCNC control system, troubleshooting, production management, remote maintenance.
Quick printing plate mounting, motorized phase zero.
Powerful dust remover, with anti-static bar, centralized dust collection, less ECT loss.
High precious transfer structure with ceramics vacuum transfer wheel, good registration accuracy.
Choose international brand electric components and transfer bearings, pass CE certification.

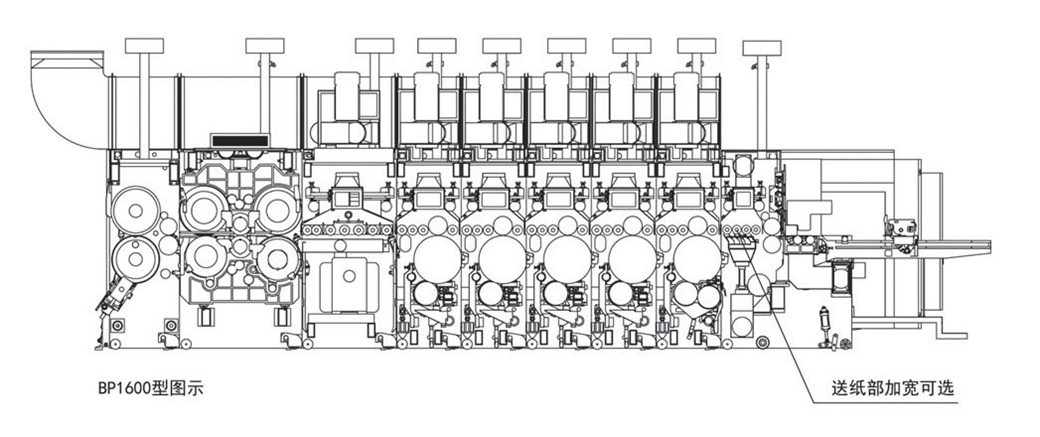

Graphic (BP-1628)

Operation can be controlled by both main console and each unit touch screen.
Lead-edge feeding, adjustable air control, precious registration
Precious liner guideway lateral moving
Motorized side squaring and paper support
Powerful dust remover, with anti-static bar, centralized dust collection, less ECT loss.

Operation can be controlled by both main console and each unit touch screen.
Bottom print, high precious transfer structure with ceramics vacuum transfer wheel, good registration accuracy.
Quick printing plate mounting, motorized phase zero.
Ink saving circulate system, safety ink taking, short ink alarm.
Option: Double doctor blade.

Up die-cutting, clean up scrap thoroughly, motorized die-cutting pressure adjustment.
Die-cutting roll pneumatic self-locking device, smooth die-cutting.
Sheet guide roll displacement motorized control, quick order change.
U.E quick change die-cut anvil with micro-grinding mechanism.
Precious settable speed difference compensation, ensure die-cutting accuracy.
